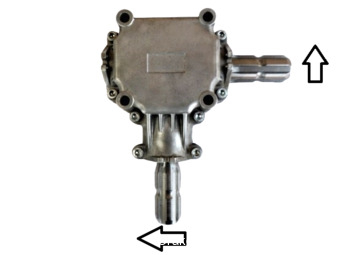

Gearbox (15HP, ratio 1:1, 6 splines / 6 splines) (image 1) Gearbox (15HP, ratio 1:1, 6 splines / 6 splines) (image 2) Gearbox (15HP, ratio 1:1, 6 splines / 6 splines) (image 3)

Item number: SZA-006


The house of the gearbox is aluminium casting.

Ratio: 1:1

The maximum transmittable horse power:

At 540RPM is 15HP, at 1000RPM is 23HP.

Input shaft: 1-3/8" 6 spline

Output shaft diameter: 1-3/8" 6 spline

Weight: 4,8kg

Application of the gearbox:

Lawn mower and fertilizer spreader

Importat information:

The gearbox is not filled with oil.

The recommended oil type is 80W90.

Oil capacity:

Gearbox (15HP, ratio 1:1, 6 splines / 6 splines)
  • 105.23 EUR (82.86 EUR + VAT)
  • On stock
  • Weight
    4.8 kg

Item number: SZA-006
