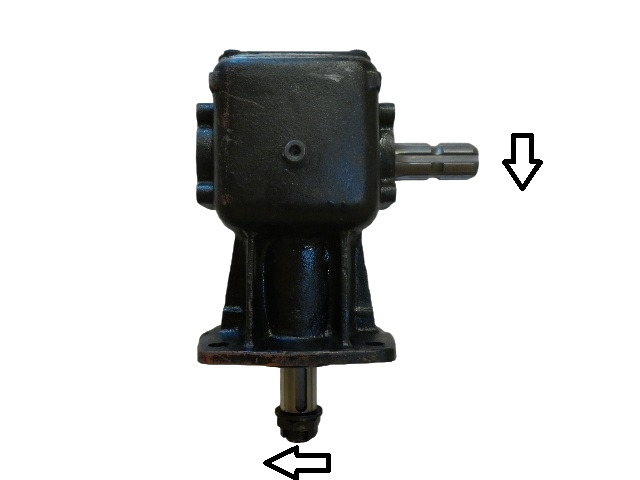

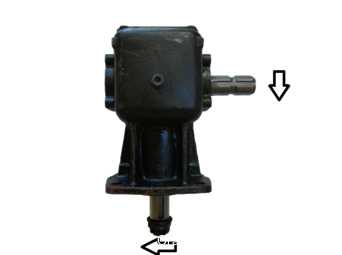

Item number: SZV-003

The house of the gearbox is iron casting.

Ratio: 1:2,83

The maximum transmittable horse power:

At 540RPM is 30HP

Input shaft: 1-3/8" 6 spline

Output shaft diameter: 33 mm with key

Weight: 15,7kg

Application of the gearbox:

Lawn mower

Importat information:

The gearbox is not filled with oil.

The recommended oil type is 80W90.

Oil capacity:
