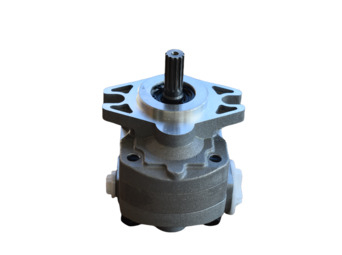

Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 1) Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 2) Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 3) Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 4) Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 5) Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 6) Hydraulic pump Hinomoto C,E(3 cylinder),N series – Japanese compact tractor part (image 7)

Item number: HSZ-10

Hinomoto tractors:

C142, C144, C172, C174

E21, E23, E25, E202, E204, E222, E224, E1802, E1804, E2002, E2004, E2302, E2304

N239, N249, N279


OEM number: 6103-3111-001


Dimensions of axis:

Number of splines: 12

Diameter of axis: 13,5mm

Length of axis: 32mm


Max pressure: 160bar

Direction of rotation: left

Hydraulic pump Hinomoto C,E(3 cylinder),N series
  • 315.76 EUR (248.63 EUR + VAT)
  • On stock
  • Weight
    1.8 kg

Direction of rotation: left
