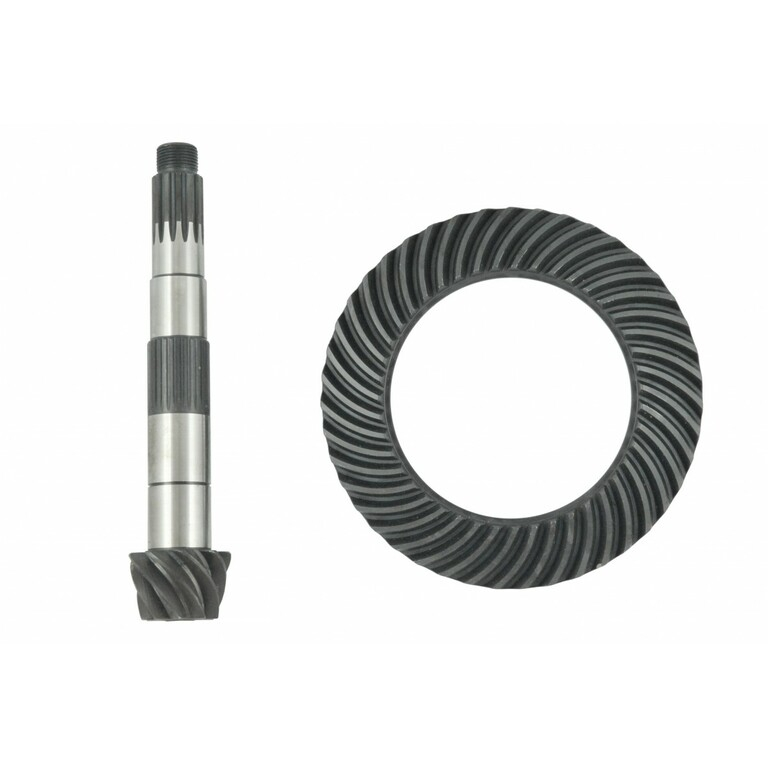

Disc wheel + attack roller Yanmar F, FX series Disc wheel + attack roller Yanmar F, FX series Disc wheel + attack roller Yanmar F, FX series

Dimensions:

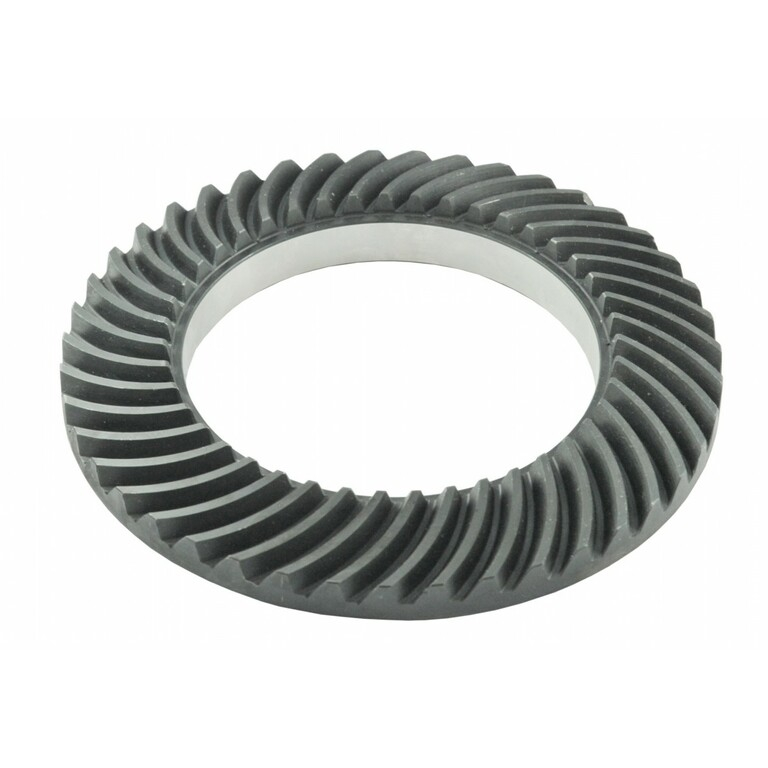

Outer diameter of the plate: 187 mm.
Internal diameter of the disc: 118 mm.
Height: 23.50 mm.
Number of disc teeth: 43T.

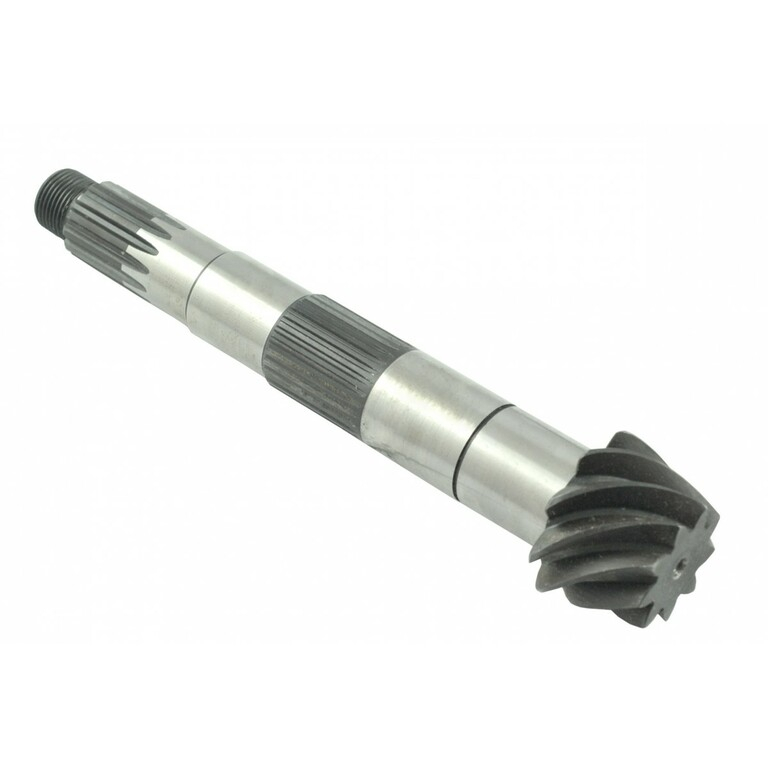

Roller length: 229 mm.
Roller diameter: 20/25 / 27.30 / 29.70 / 30 mm.
Roller diameter element with teeth: 48/37 mm.
Length of the shaft with the teeth: 31.50 mm.
Number of teeth of the attack roller: 9T.
Shaft thread: 20 mm.

Yanmar OEM part number: 194555-31300

Disc wheel + attack roller Yanmar F, FX series
  • 657.86 EUR (518.00 EUR + VAT)
  • On stock
  • Weight
    5.1 kg

F20, F20D, F22, F22D, F24, F24D, F215, F215D, F235, F235D, FX20, FX20D, FX22, FX22D, FX24, FX24D, FX215, FX215D, FX235, FX235D
