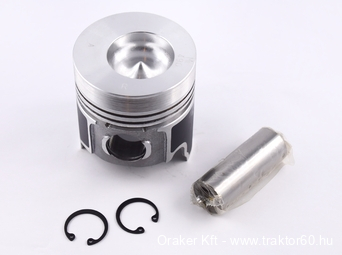

Standard size piston with piston pin for Yanmar FX26, FX28, FX32, FX42, FX285, FX305, FX335, FX435 tractors.

Piston diameter: 78 mm

Engine type: Yanmar 4TNA78

Importat information before order:

As more vesrions can occure from this piston please check the below dimensions before your order:

Total height of the piston: 87mm

Piston head height (Distance between the top of the pin and the top of the piston): 37,4mm
